Accessibility
Wheelchair Lift

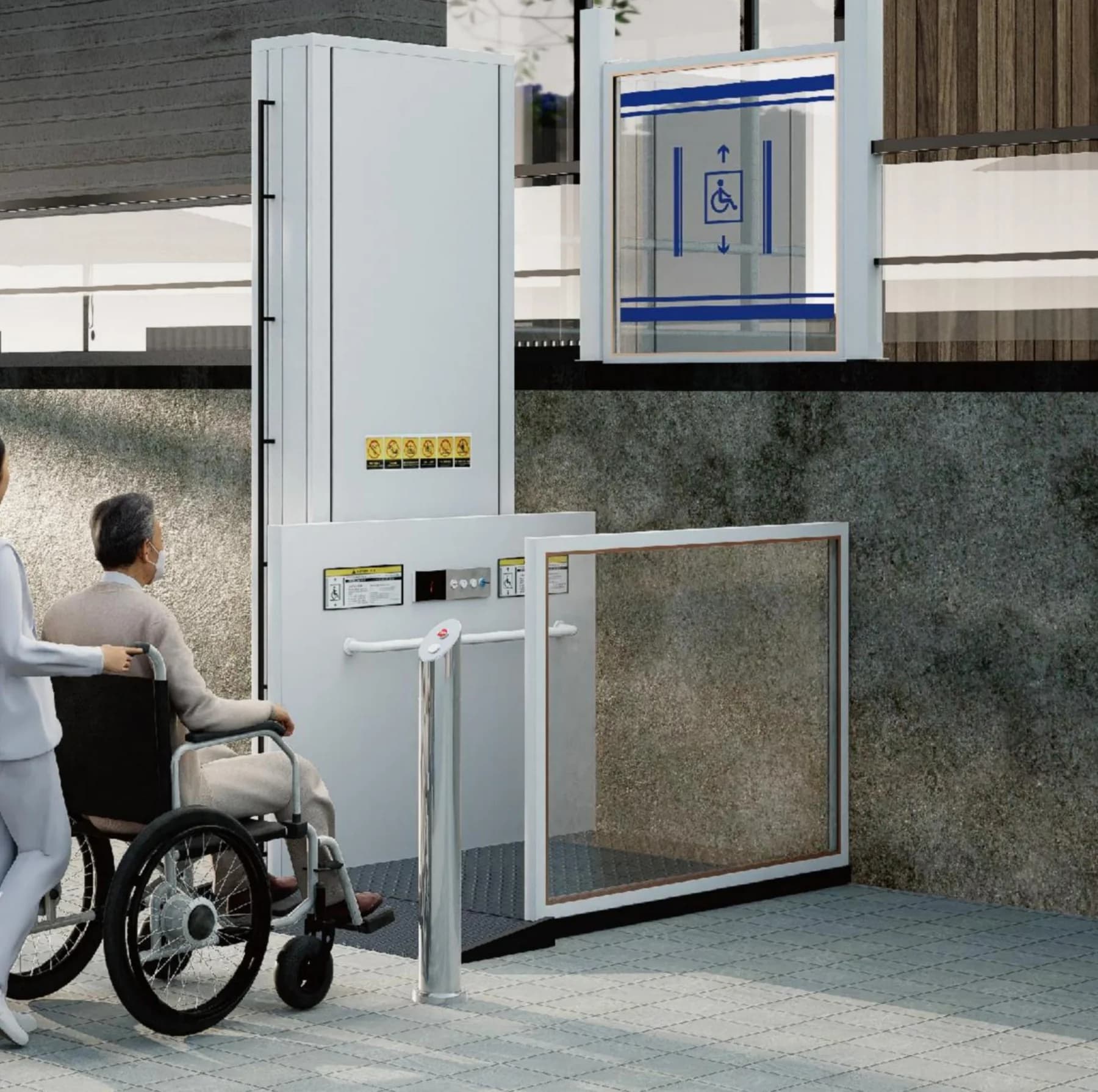

A wheelchair lift is a platform lift that carries a wheelchair and its user over a short rise — a flight of entrance steps, a threshold, a change of level inside a building. It needs no pit, fixes to a concrete slab, works outdoors, and can be called by remote control. Prawita Karya supplies and installs them in Indonesia.
What to know about wheelchair lift
The problem this solves is usually a few steps, not a few storeys. An entrance with a flight up to it, a raised lobby, a threshold between inside and out: short rises that a ramp cannot always fit and a lift is too much building for.

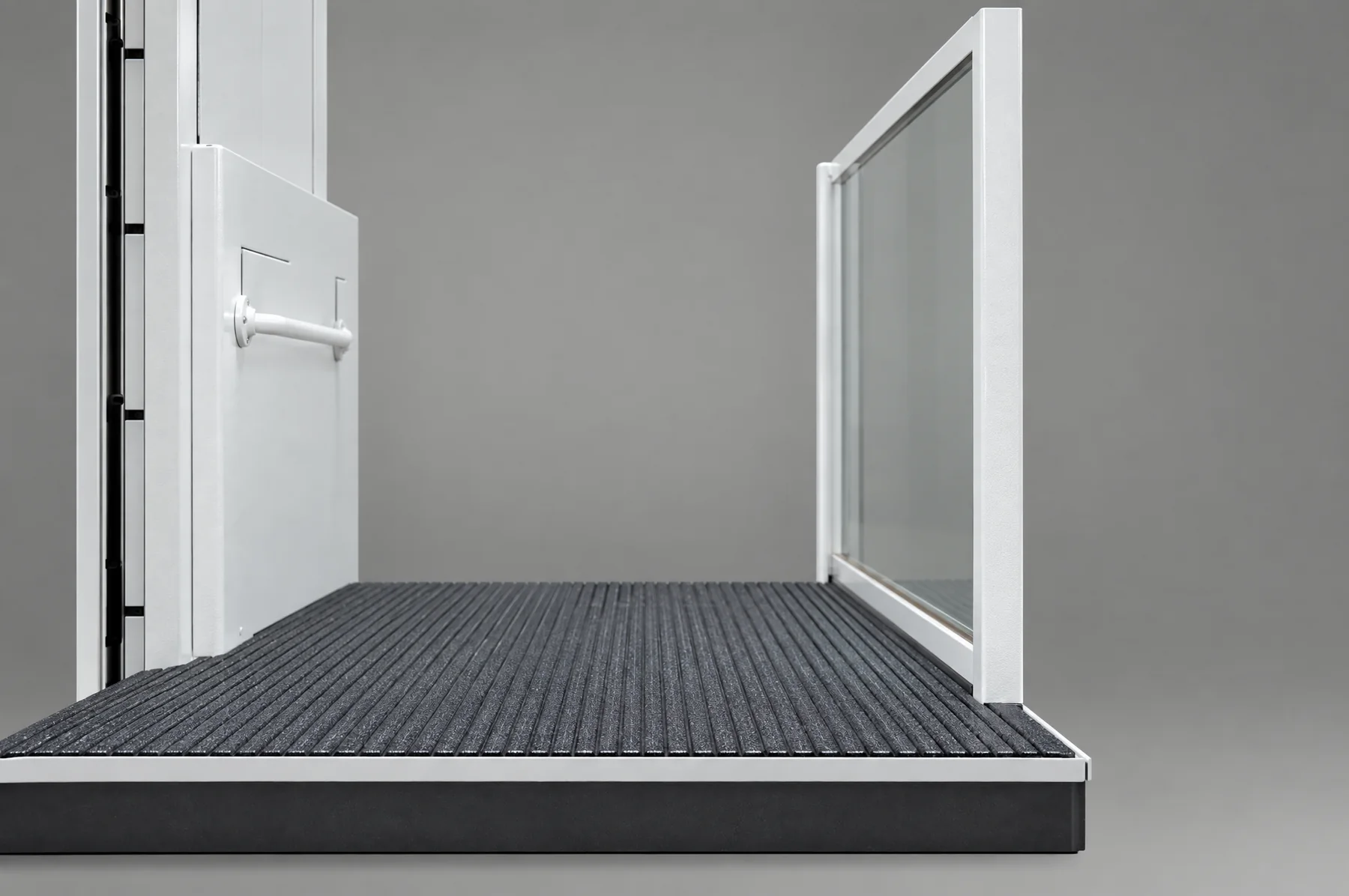

The platform is skid-proof stainless steel with an automatic turning plate, so a wheelchair can be pushed straight on and taken off at the side, at 90° or at 180° depending on where the lift sits. Entry and exit are configured to the geometry rather than the other way round.
It is built for outdoor duty as much as indoor — rated from −20 °C to 60 °C — and fixes directly to a concrete floor at least 200 mm thick with no pit. Controls are by button or remote, which matters where the user arrives alone.
In detail
Up close.
Studio renders, made from photographs of the real equipment.

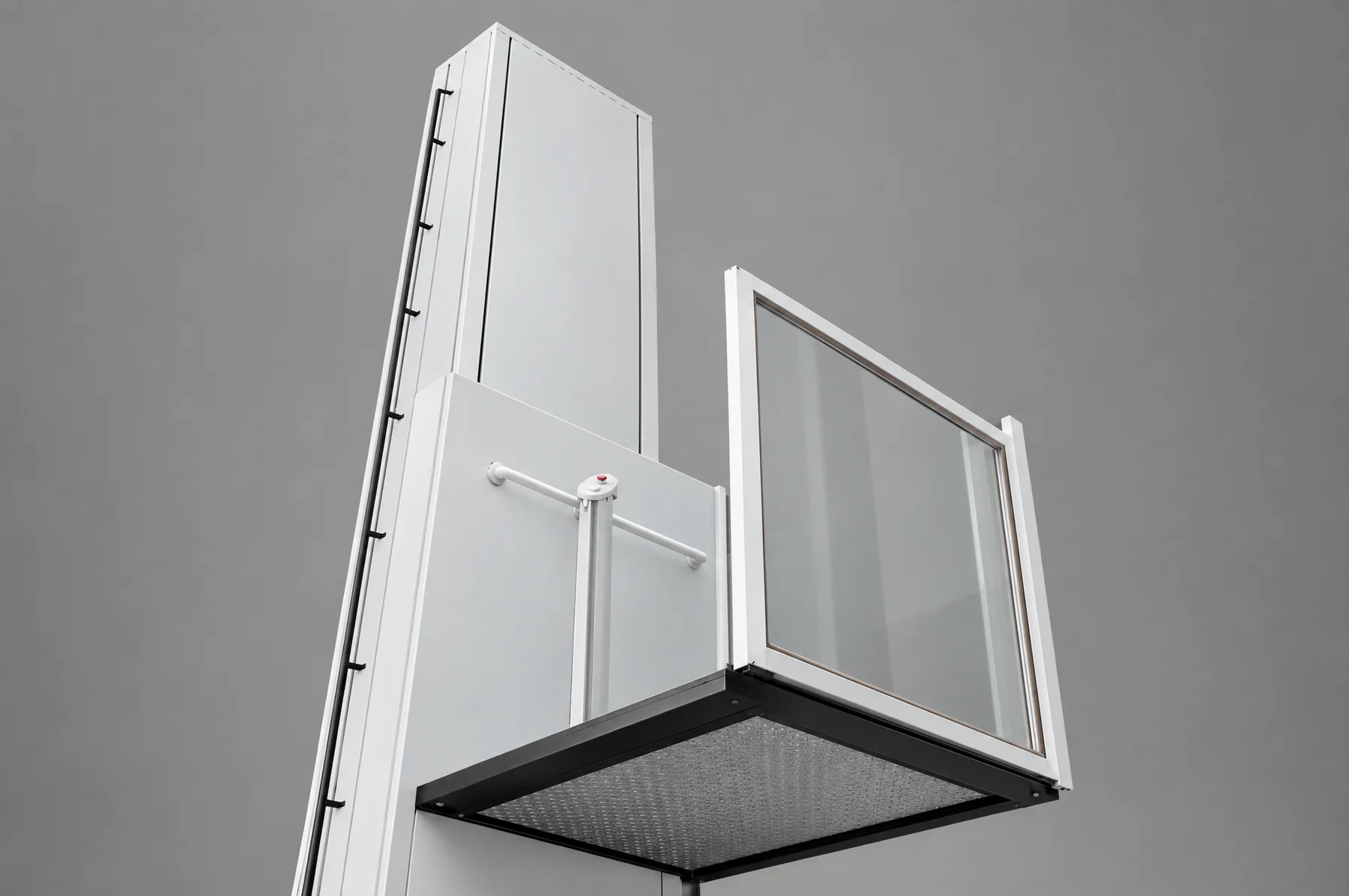

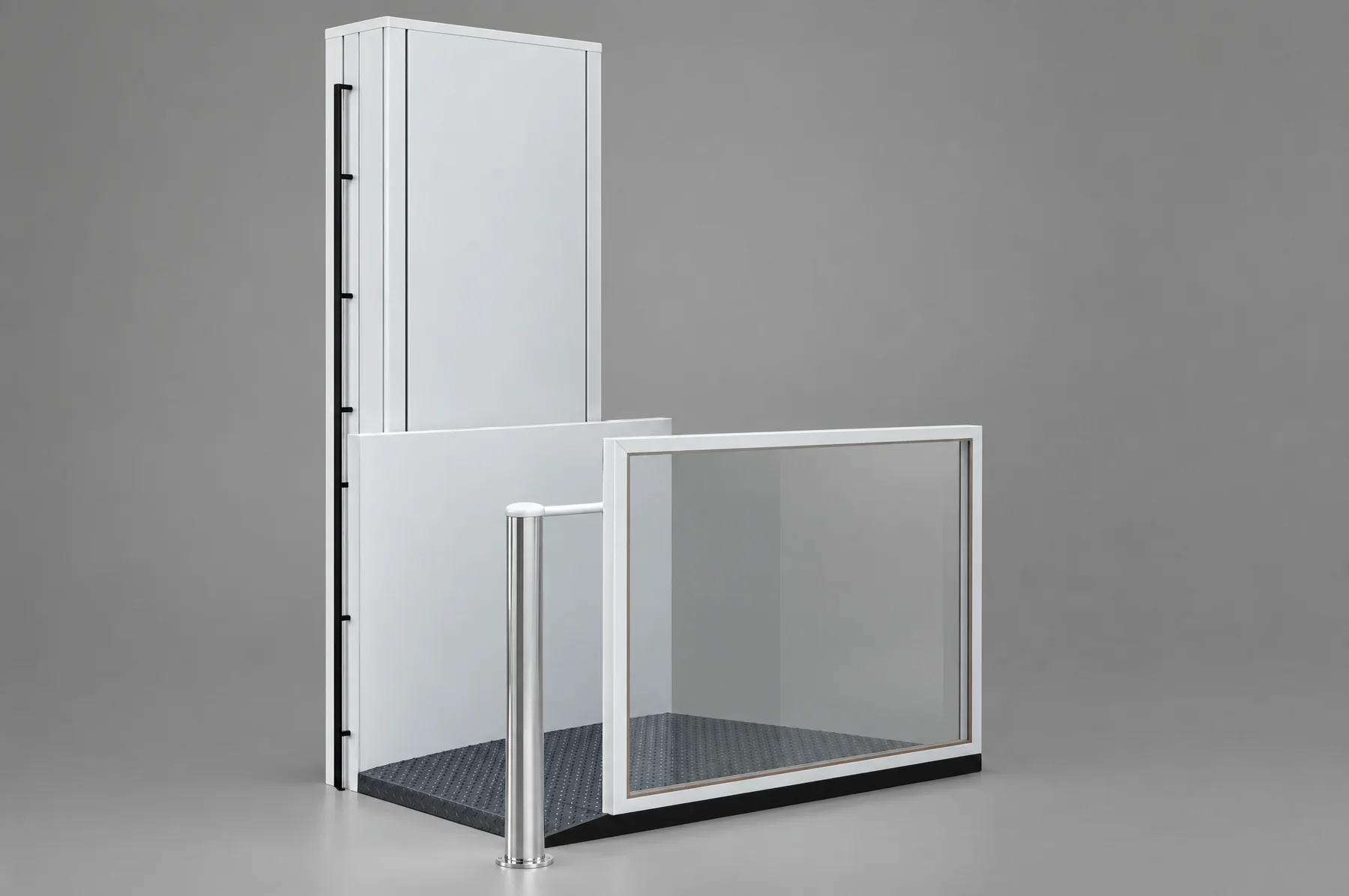

The mast, the glass guard and the platform.
Specifications
Technical data
Specifications are configured per project. Figures below are confirmed against the selected equipment during survey and specification.
- Lifting speed
- 4 – 6 m/min
- Entry and exit
- Same side, 90° or 180°
- Platform
- Skid-proof stainless steel, auto turning plate
- Drive system
- Hydraulic power unit
- Power supply
- Single phase 220 V / 50 Hz (or customised)
- Control
- Button and remote
- Environment
- Indoor or outdoor, −20 °C to 60 °C
- Installation
- No pit; fixed to concrete at least 200 mm thick
Applications
Where it is used
- Entrance steps at a house or a public building
- Raised lobbies and thresholds between inside and out
- Short changes of level inside a building
- Accessibility retrofits where a ramp will not fit the space
Why Prawita Karya
What you get
No pit
Fixes directly to a concrete floor of at least 200 mm; no excavation.
Indoors or outdoors
Rated from −20 °C to 60 °C, for an entrance as readily as a lobby.
Called by remote
Button and remote control, so a user arriving alone can bring the platform to them.
Services
Supporting services
FAQ
Common questions
Does a wheelchair lift need a pit?
No. It fixes directly to a concrete floor, which needs to be at least 200 mm thick. That is the main reason it suits a retrofit — an existing entrance usually already has the slab.
Can a wheelchair lift be installed outside?
Yes. It is rated for indoor or outdoor use from −20 °C to 60 °C, with a powder-coated finish. An entrance step is one of the commonest places it goes.
How high can a wheelchair lift travel?
It is a short-rise platform lift rather than a passenger elevator, and the travel is set by the model and configuration supplied.
Specifying wheelchair lift for a project?
Send us the building and we will help you get the specification right before it is expensive to change.
