Tenkai Home Lift

Tenkai Mizu

The widest spread of capacity and speed, at the most competitive price.

Mizu is the steel-belt traction model at the most competitive price in the range, and the one with the widest spread of capacity and speed. It comes as standard with a solid wood car and a touchscreen control panel.

Car type
Cabin
Rated load
400 kg / 450 kg / 630 kg
Rated speed
0.4 / 0.63 / 1.0 m/s
Minimum pit
200 mm (150 mm with sill)
Power supply
Single or three phase
Get a QuoteTalk to an Engineer

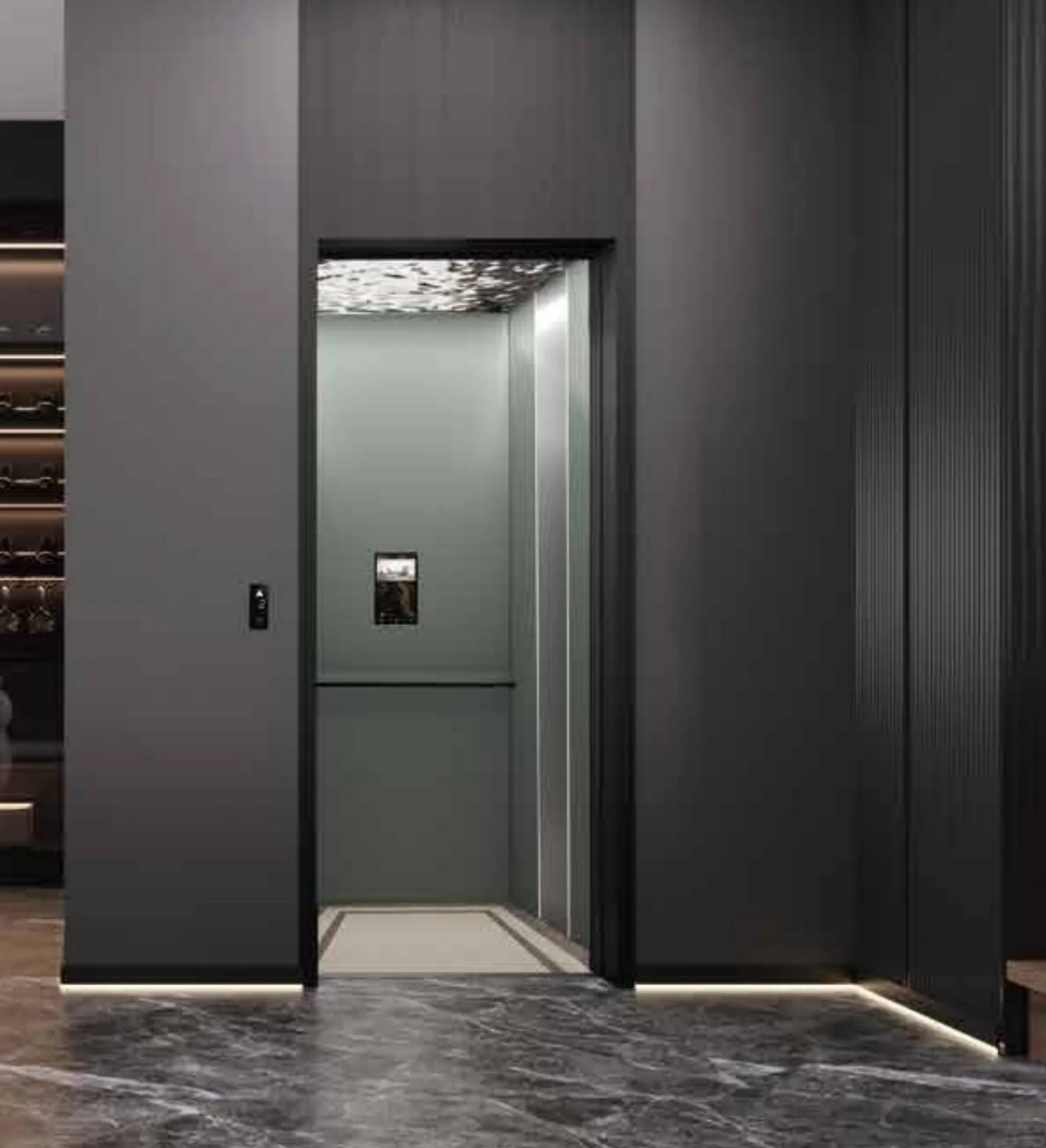

Tenkai Mizu home lift with its landing door open, set flush into a dark panelled wall with a pale green car interior

Standard configuration

What comes as standard.

  • Monadrive steel belt traction machine
  • Touchscreen COP and LOP
  • Solid wood splicing stainless cabin wall
  • SUS 304 landing door
  • Hpmont V2 controller
  • LED light strip
  • Ouling door machine
  • German ELGO magnetic scale absolute-position shaft measurement system
Close-up of the Tenkai Mizu car, showing the solid wood wall and touchscreen panel

In detail

Up close.

Studio renders, made from photographs of the real lift.

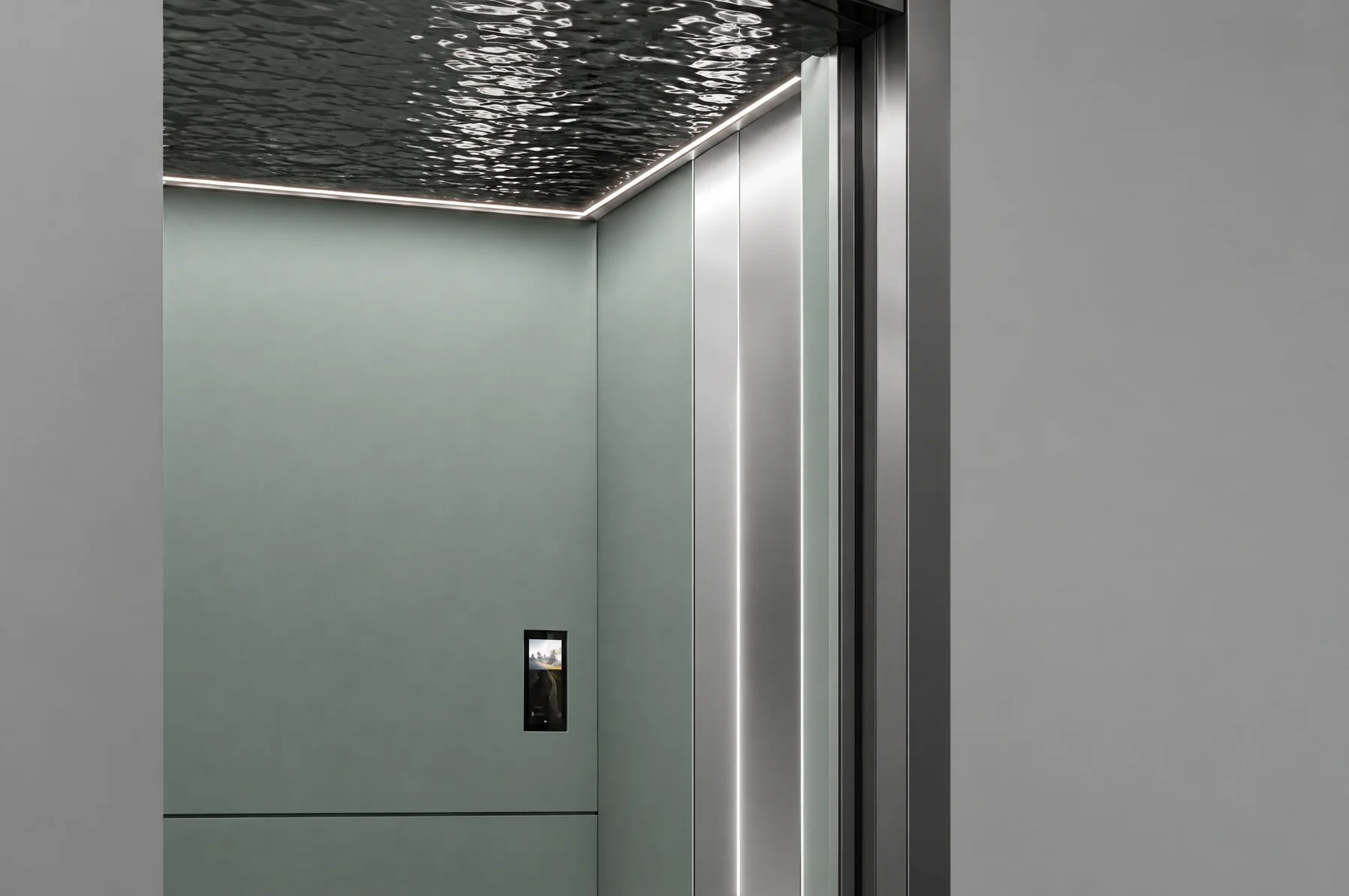

  • Studio close-up of the Tenkai Mizu car: a black water-ripple ceiling over a light strip, pale green wall panels, the mirror stainless entrance column and the car panel display

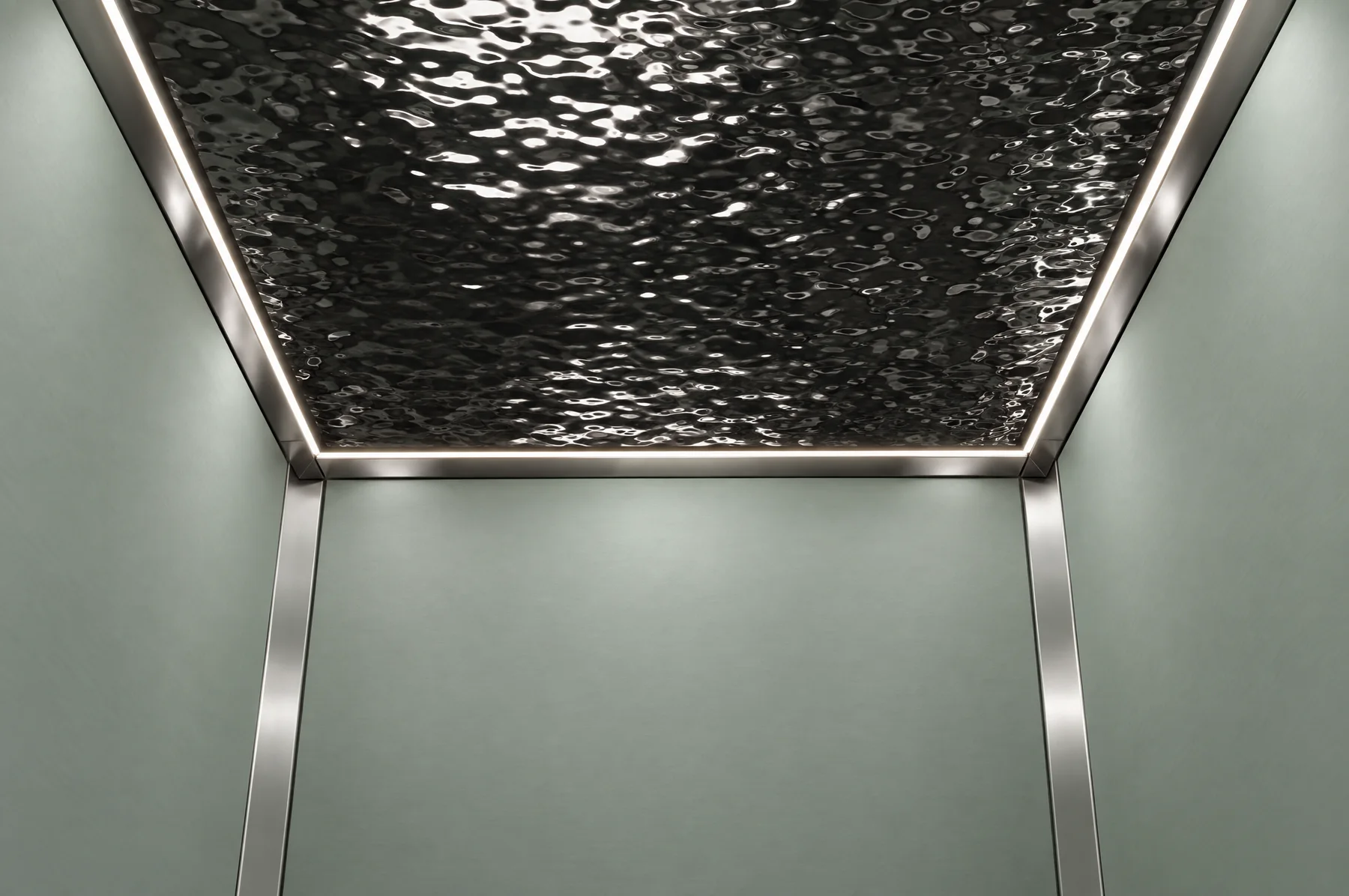

  • Looking up inside the Tenkai Mizu car at the black water-ripple ceiling panel, the light strip running round its perimeter and the pale green walls below

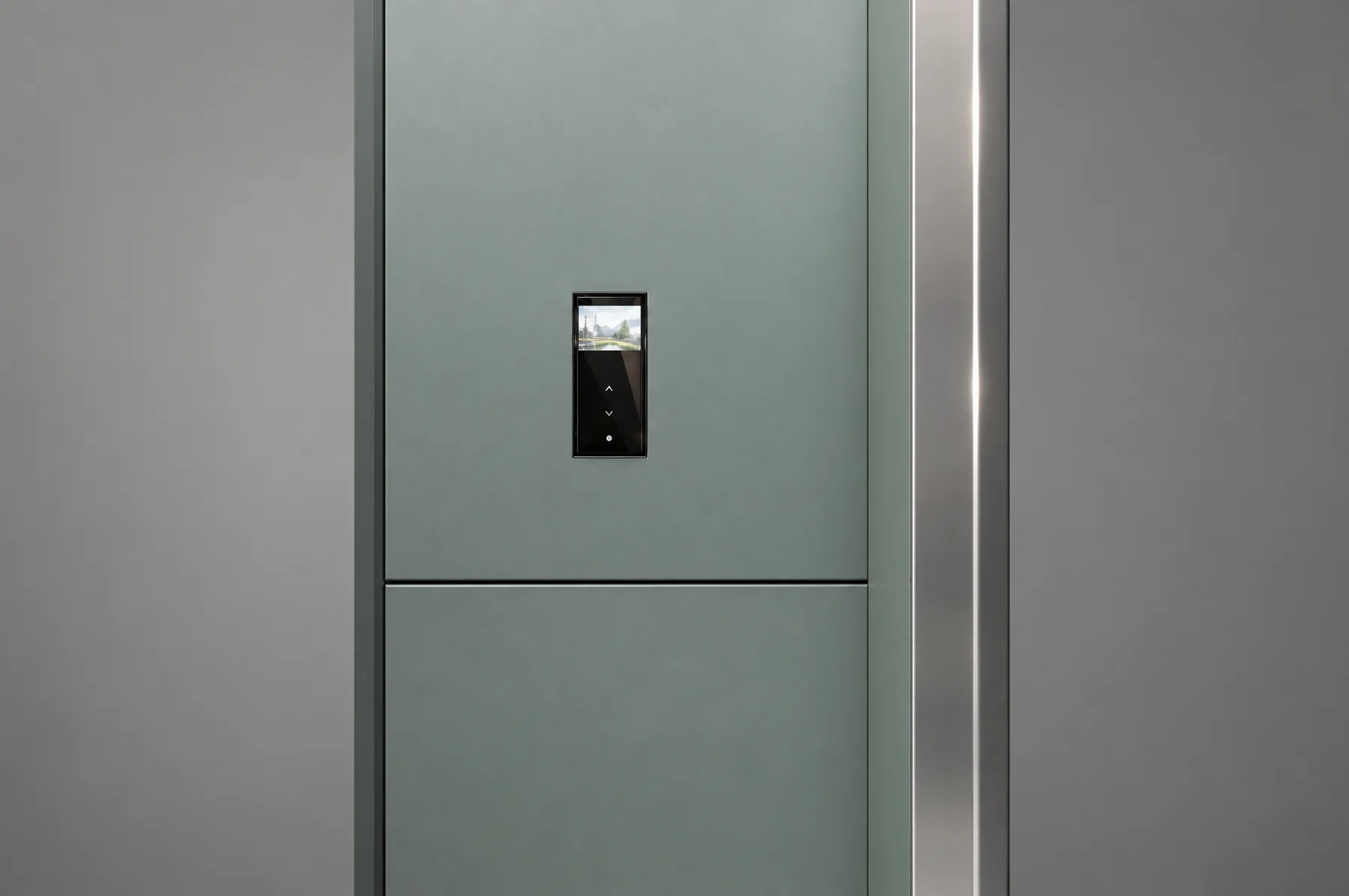

  • Close-up of the Tenkai Mizu car panel, a slim black glass plate with a small colour display set into the pale green wall beside the mirror stainless column

The water-ripple ceiling, the light strip and the car panel.

Installed

In a house.

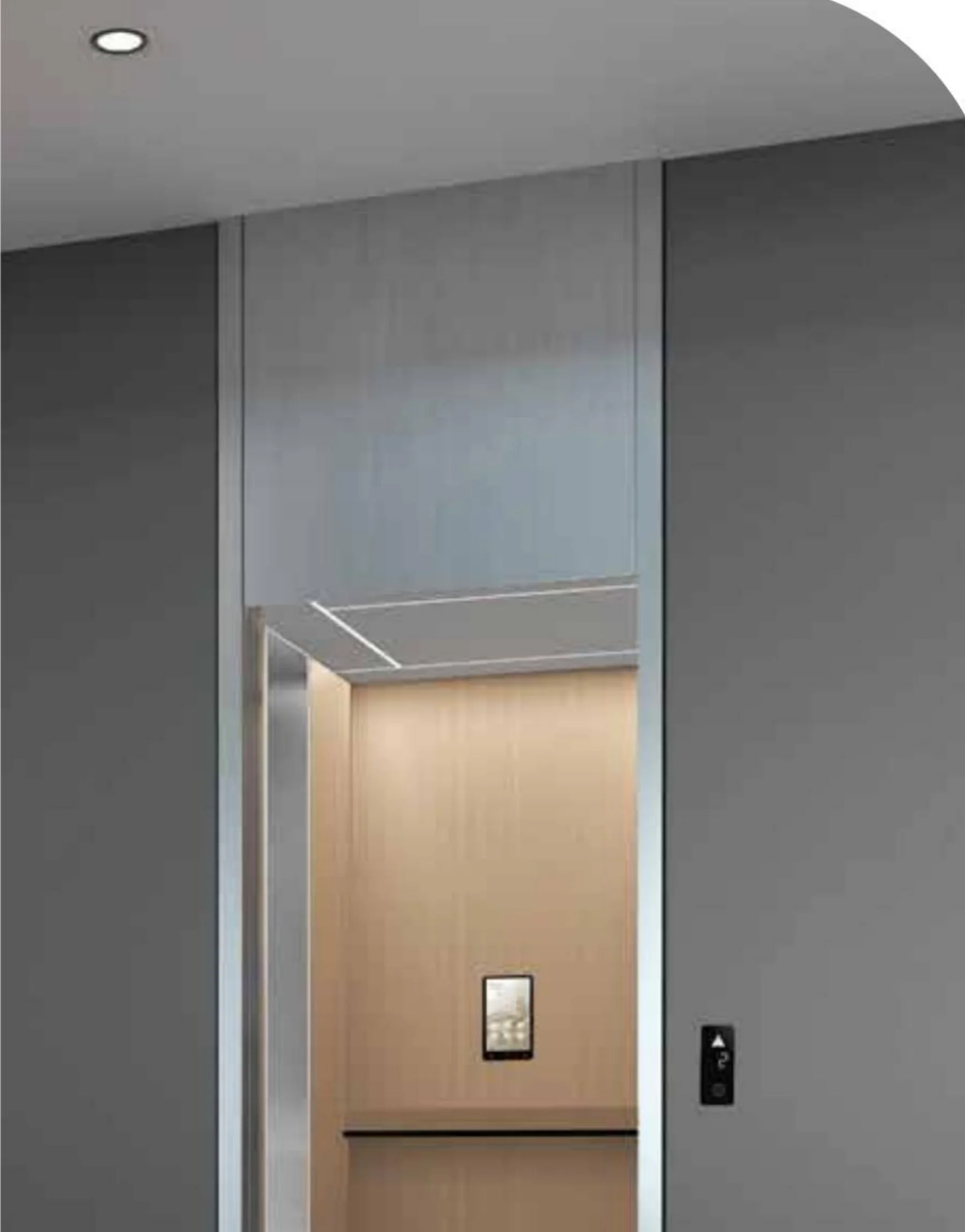

  • Tenkai Mizu landing door set flush into a grey panelled wall, the pale wood car interior visible through the open door
    A Mizu landing door set flush into the wall.

The rest of the range

Three other models.

All Tenkai home lifts →

Which model suits your house?

Shaft, pit and overhead decide it more often than anything else. Send us the space and our engineers will tell you what fits.

Get a QuoteCompare all four
